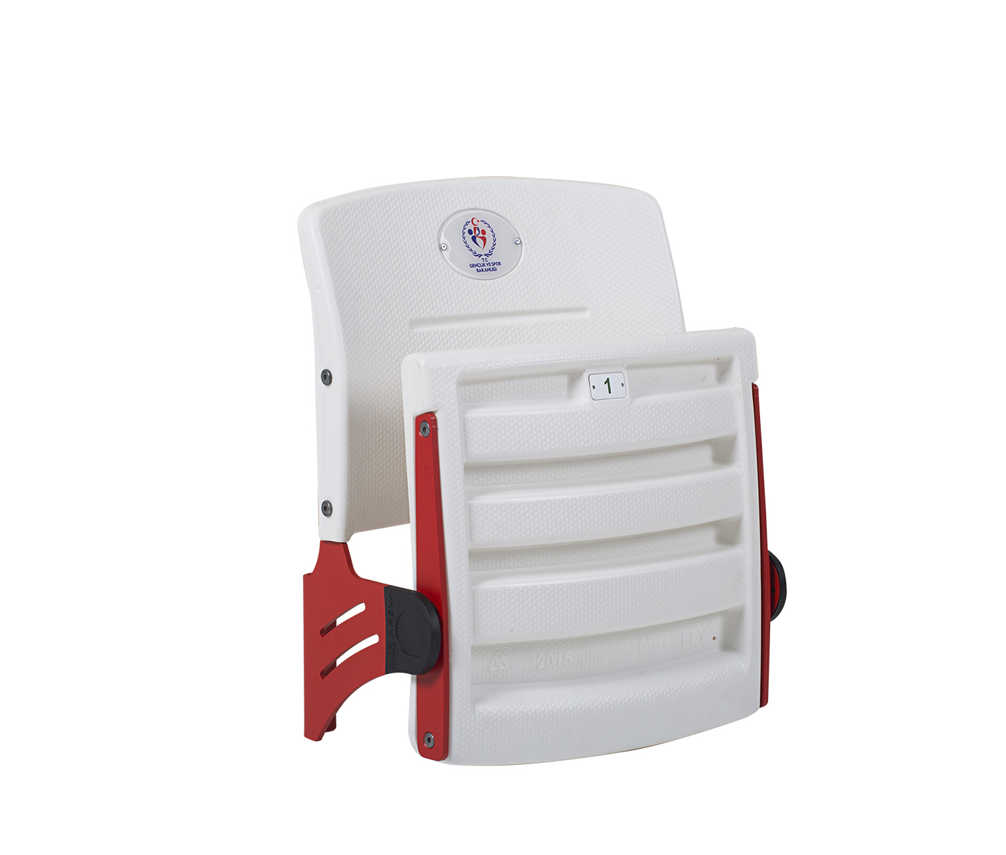

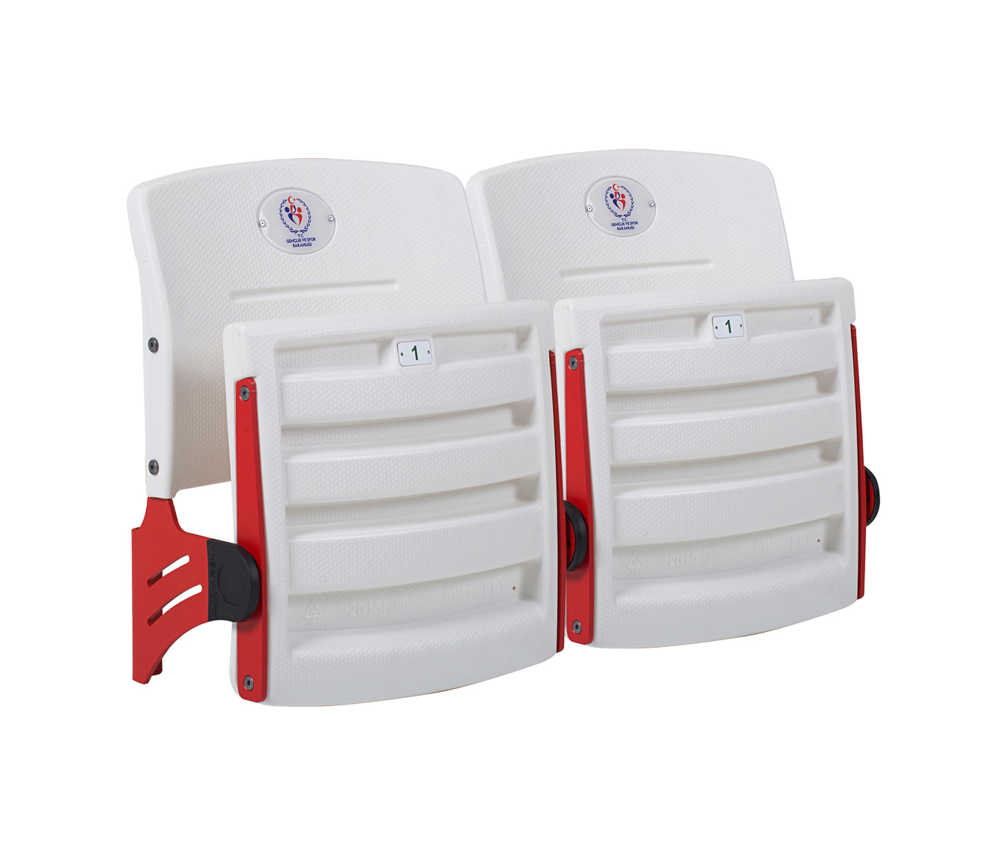

FLY-101 Stadium Seat

Fly-101 stadium seat provides faster assembly and production with its direct riser-connection feature. Thanks to its center of gravity system, the Fly-101 stadium seat is maintenance-free throughout its lifetime. The plastic seat and back used in the seats are manufactured as PP or PE by blowing method. Thanks to the internal metal construction in the seat font, the durability of the product has been maximized.

Requested applications can be made in the logo and advertising area on the back of the seat. The numbering area under the seat font allows users to find their places more easily and quickly. Thanks to the thin structure of the seat, it is possible to relieve the circulation on the steps and increase the capacity.

Technicial Specifications

• It is manufactured as PE or PP.
• UV added in accordance with EN ISO 4892-2 standard.
• It is corrosion resistant in accordance with EN ISO 9227 standard.
• It is in compliance with the EN ISO 11925-2 standard and 13501-1/E class with non-combustibility additive.
• It is highly resistant to hooliganism in accordance with EN ISO 13200-4 standard.

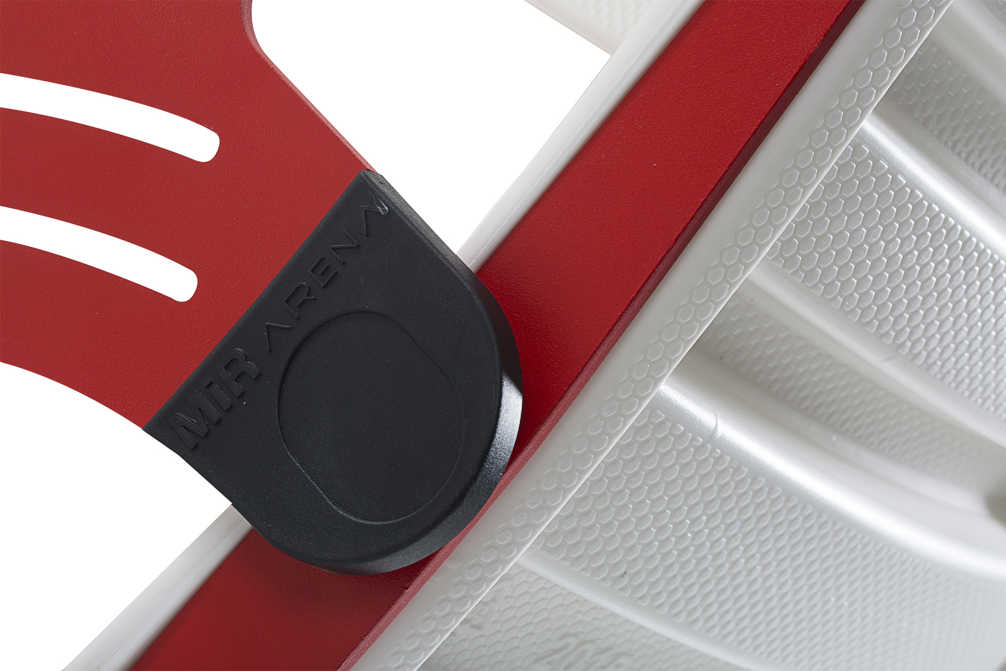

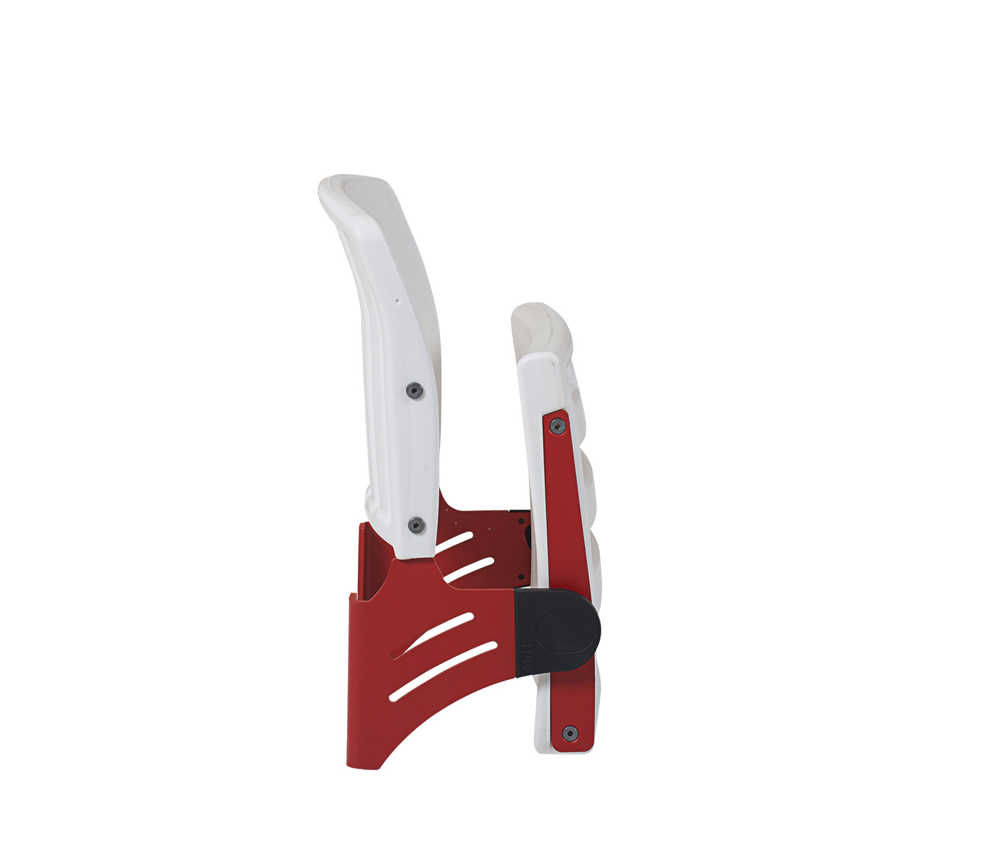

• The seats have a folding mechanism that works with the center of gravity system.
• The metal parts of the seats are designed and manufactured from 6 mm one-piece sheet metal without welding, by laser cutting and bending in press molds.
• The plastic weight of the seats is 3.250 gr and the total weight is 9.540 gr.

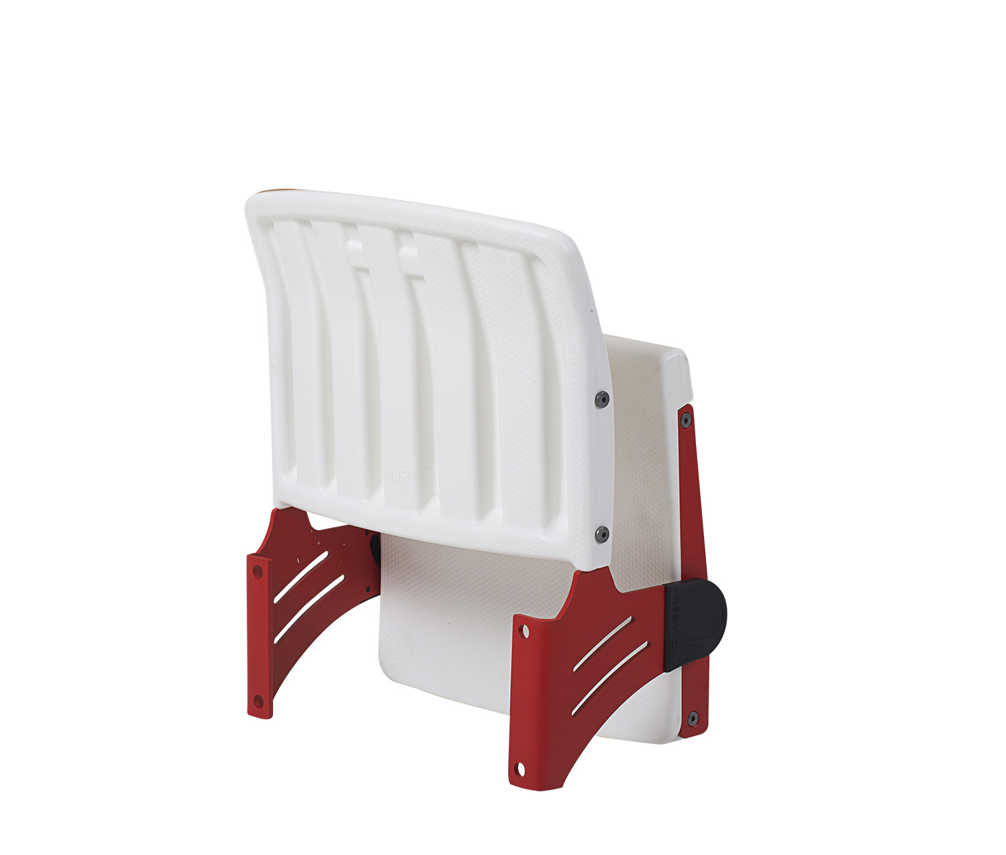

• There is a logo and advertising area on the back of the seats.

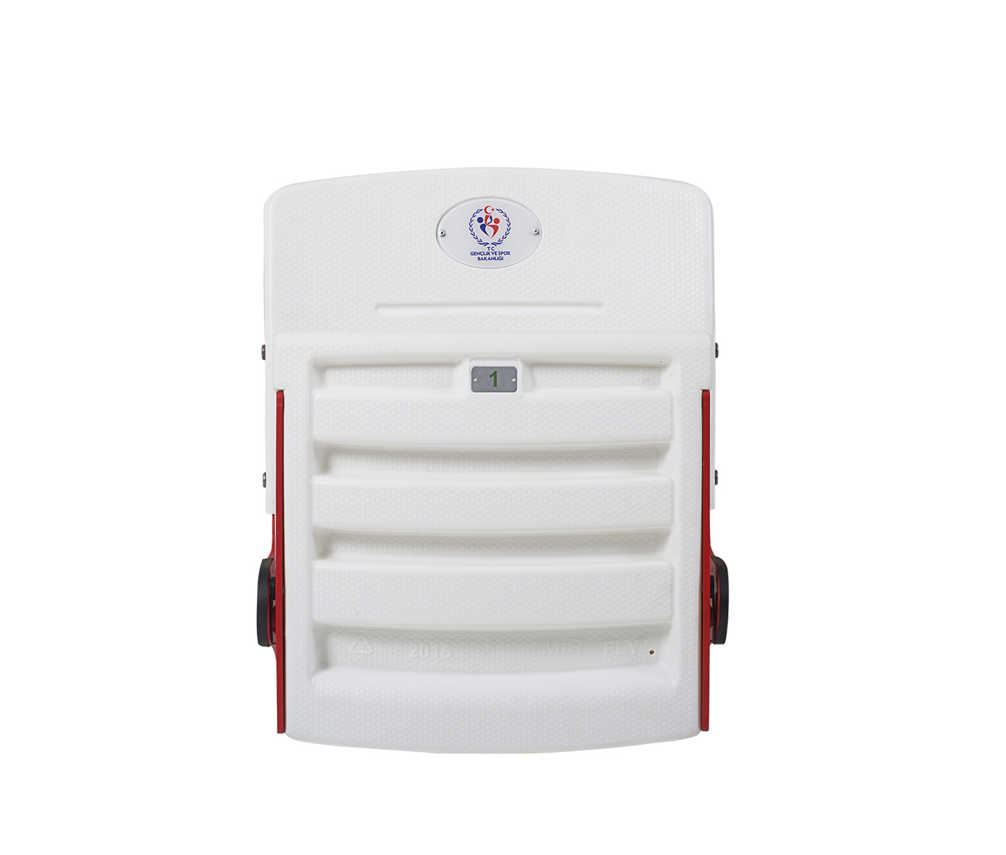

• There is a seat numbering area under the seat.

Downloads

Catalog / Brochure

• FLY 101

Certificates

• EN ISO 14001-2015
• EN ISO 9001-2015
• EN 13200-4
• EN 13501-1-FR
• UL 94
• CORROSION TEST
