MOD-209 Upholstered VIP Stadium Seat

Mod-2 series stadium seats are products designed for all kinds of use, with a folding system that works with the center of gravity.

Mod-2 series stadium seats are manufactured according to the specifications for indoor or outdoor use. Mod-2 series stadium seats are highly resistant to hooliganism in accordance with EN 12727-4 standard, thanks to its patented single-piece weldless sheet metal structure. Mod-2 series is a high-strength stadium seat series that meets the requirements of FIFA, UEFA and other international sports federations. Mod-2 series stadium seats aim to provide a comfortable experience to users thanks to their ergonomic structure.

Pack Qty.
Pack Qty. 2 pc.
Package Size
Package Size 50x70x50 cm
40" Container
40" Container 680 pc.
90 m³ Truck
90 m³ Truck 740 pc.

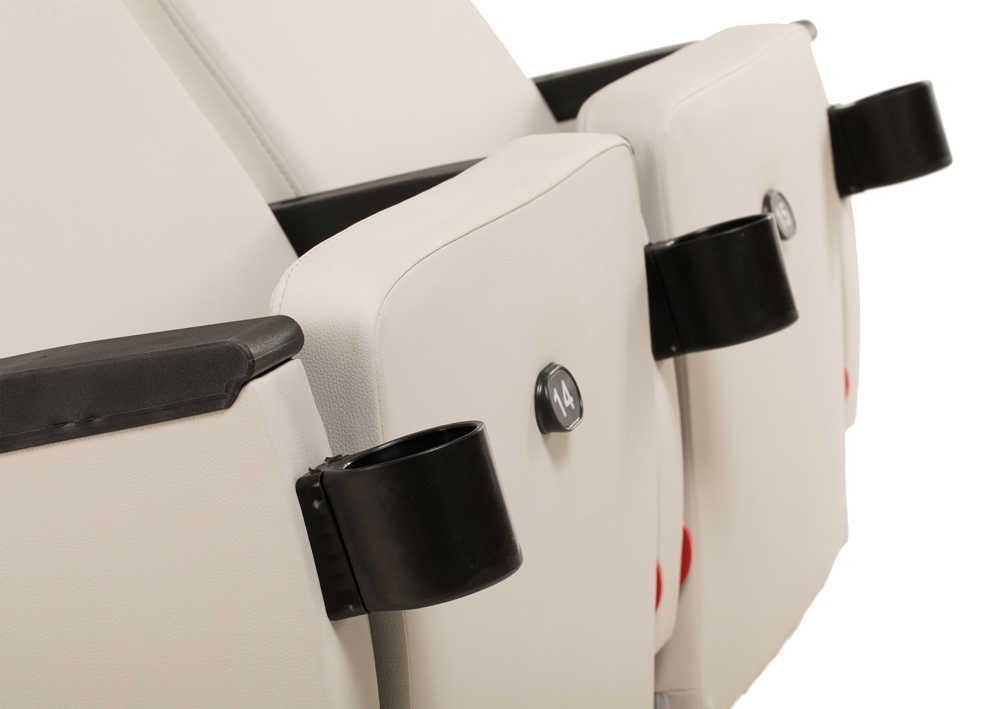

MOD 209 Stadium Seat Detail 01

•    Mod-208 stadium seat is mounted with sleeper (rail system). The sleepers are mounted at the height of the riser and optionally on the riser (step front) or on the floor. Thanks to the sleeper system, the seats can be fixed easily and quickly. Thanks to the sleeper system, the seats can be fixed easily and quickly. Thanks to this system, it is possible to adapt the space to the desired capacity, to adjust the distance between the seats or to make possible product and layout arrangements easily. Thanks to its center of gravity system, Mod-208 stadium seat is maintenance-free throughout its lifetime. Cast polyurethane sponge is used in the seat and back font of the seats and there is a metal frame inside. The polyurethane and artificial leathers used are manufactured with non-combustibility additives. 4 mm lamination is applied to the furnishings used in the Mod-208 stadium seat.

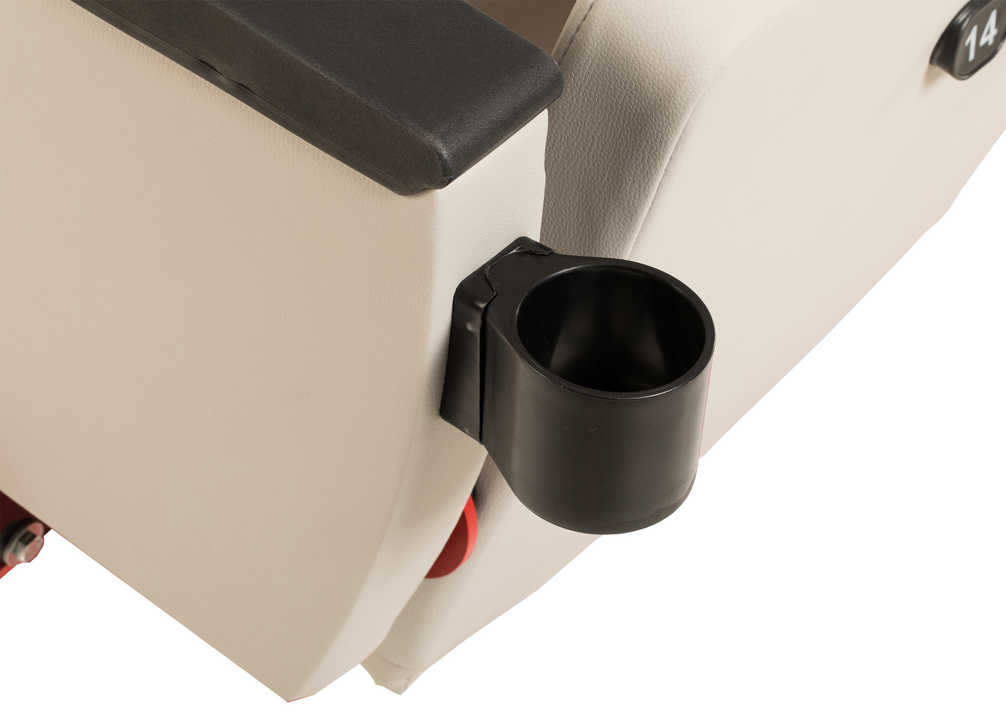

MOD 209 Stadium Seat Detail 02

Sırt fontunda bulunan döşeme alanı logo ve reklam uygulamalarına olanak sağlar. Koltuklarda kullanılan döşemeler UV, aşınma, klor ve yanmaya karşı dayanıklı katkılarla üretilmektedir. Mod-208 stadyum koltuğunda üst yüzeyinde PP enjeksiyon plastik kol dayama ünitesi ve ön yüzeyinde bardaklık bulunan döşemeli kolçaklar kullanılmaktadır. Kullanılan kolçakların iç iskeleti metal profil üzeri mdf kaplama olarak üretilmektedir. Mdf kaplamanın üzeri döşeme ile kaplanmaktadır. Kolçaklar isteğe bağlı olarak ortak veya her bir stadyum koltuğu için iki adet olarak üretilebilmektedir. Kolçaklar travers sistemine bağlanmaktadır. Koltuklarda kullanılan başlıklar modüler üretilmektedir. Koltuk oturak fontu altına bulunan numaralandırma alanı ve opsiyonel olarak sunulan travers sıra numarası, kullanıcıların yerlerini daha kolay ve hızlı bulmalarına olanak sağlamaktadır. Koltuğun ince yapısı sayesinde basamaklardaki sirkülasyonun rahatlatılması ve kapasitenin artırımı mümkün hale gelmektedir.

Technicial Specifications

  • Seating and backrest units of the seats are 50+- 10% density polyurethane filling sponge on metal frame.
  • It is in compliance with the EN FMV SS 302 standard with non-combustibility additive.
  • It is corrosion resistant in accordance with EN ISO 9227 standard.
  • It is highly resistant to hooliganism in accordance with EN ISO 12727-4 standard.
  • Artificial leathers used in furnishings are manufactured with additives that provide high resistance against salt, UV rays, fire and chlorine.
  • Artificial leathers used in furnishings are covered with non-combustible 4 mm lamination.
  • The seats have a folding mechanism that works with the center of gravity system.
  • The metal parts of the seats are designed and manufactured from 6 mm one-piece sheet metal without welding, by laser cutting and bending in press molds.
  • The seats are firmly attached to the barriers mounted on the steps with a sliding system. With this system, fewer screw anchors are used on the steps, it provides the opportunity to slide the seats to the right and left, and the seats can be easily replaced with new ones in the future.
  • The seats increase space in the tribunes thanks to their ergonomic and thin structure.
  • The backs of the seats are suitable for logo and advertisement embroidery application.
  • Seat numbering area under the seat is available optionally.
  • Armrests are manufactured with mdf on metal frame and covered with laminated leather. There is an integrated PP injection cup holder in front of the armrests.
  • The seats have headrests.
MOD 209
